Square Post Fence

Home
Square Post Fence

PRODUCT OVERVIEW

Material: Iron steel wire and tube

Certificate: SGS, BV, ISO9001, ISO14001, ISO45001

Brand: HG Fencing

Manufacturer: HUA GUANG

Origin: China

PRODUCT DESCRIPTION

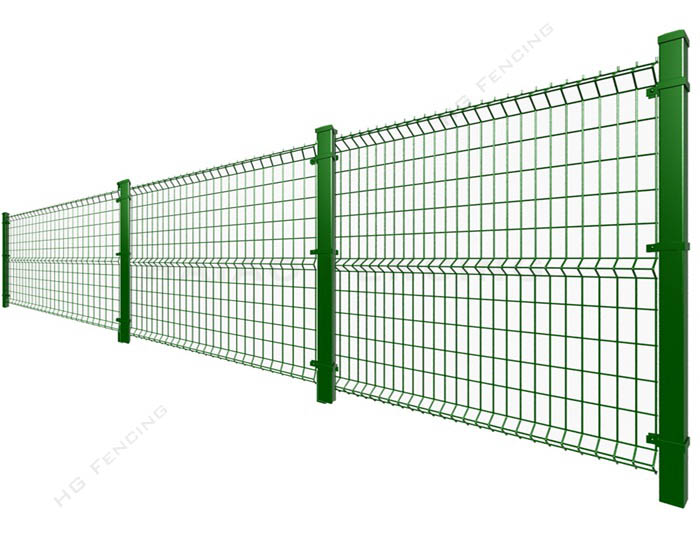

Square Post Fence also be called 3D Panel Fence, V mesh security fencing or curved mesh fence, it has simple structure and nice appearance, The V curves will make the welded mesh panel more stable and stronger.

The 3d bending mesh of Square Post Fence can effectively increase the sturdiness of the mesh compared to the traditional mesh, which will not deform and increase the service life.
Square Post Fence is made of galvanized pipe with PVC coating, which provides excellent anti-corrosion performance.
Square Post Fence can be installed around homes, gardens, public facility buildings and playgrounds, as well as around factories and various storage or warehouse areas.
Hua Guang is a wire mesh fence supplier with over twenty years of manufacturing experience, which can provide high quality fences and perfect after-sales service.

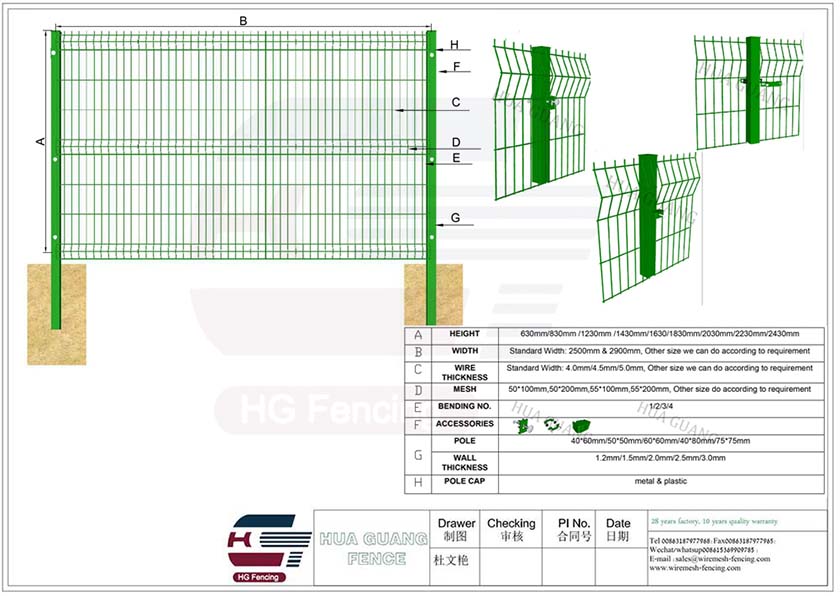

SPECIFICATION

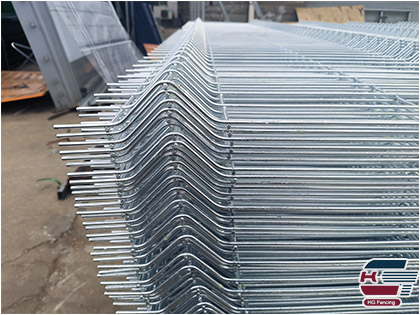

WELDED MESH PANEL

Material: high quality galvanized wire or low carbon steel wire.
Wire Diameter: 3 mm - 6 mm.
Mesh Opening: 50 mm × 100 mm, 55 mm × 100 mm, 50 mm × 200 mm, 55 mm × 200mm etc.
Length: 2.5 m or 3.0 m.
Height: 0.5m - 4.0 m, depending on your usage needs.
Surface Treatment: hot dipped galvanized, PVC coated after galvanized or powder coated after galvanized.

Height	wire diameter	Mesh opening	Panel Width
830mm	3.0mm-6.0mm	50100mm 55100mm 50200mm 55200mm	2.5m or 3.0m
1030mm
1230mm
1430mm
1530mm
1730mm
1830mm
2030mm
2430mm
2530mm
Other specifications,surface treatment of Welded Mesh Panel can be customized according to your needs

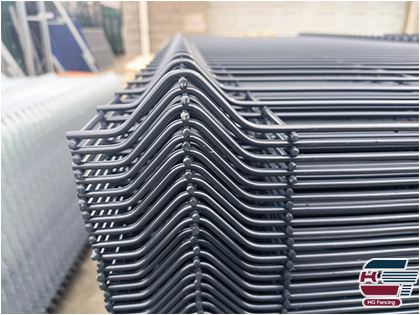

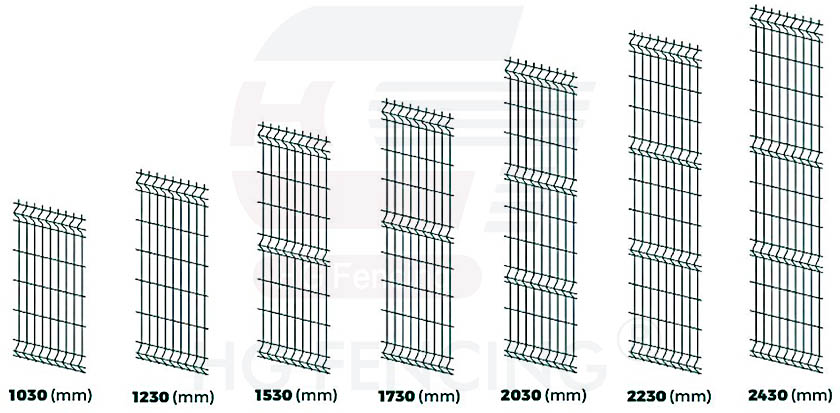

BENDING TYPE OF MESH PANEL

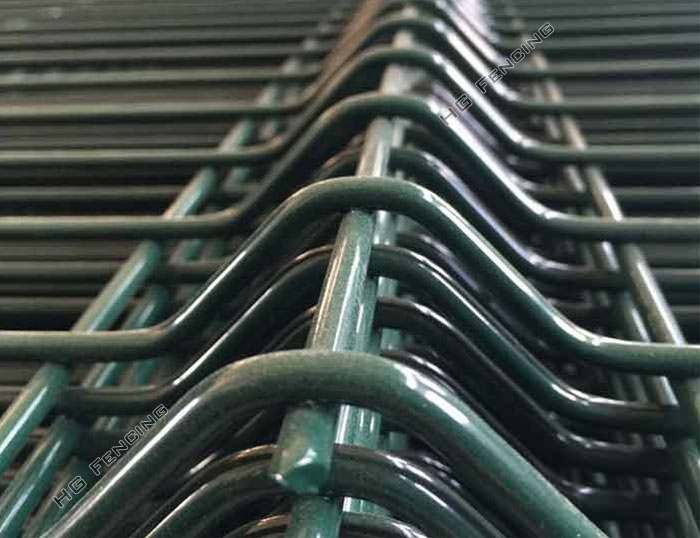

3D curved fence panel is made of high quality steel wire. These bends will significantly enhance the sturdiness of the mesh, and there are different numbers of curves on the safety fence panels depending on the height.

Height: 630 mm, 830 mm, 1030 mm, 1230 mm (2 curves).
Height: 1530 mm, 1730 mm (3 curves).
Height: 2030 mm, 2230 mm, 2430mm (4 curves).

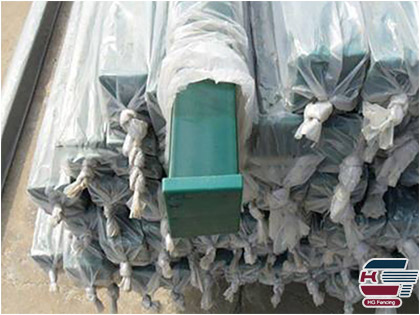

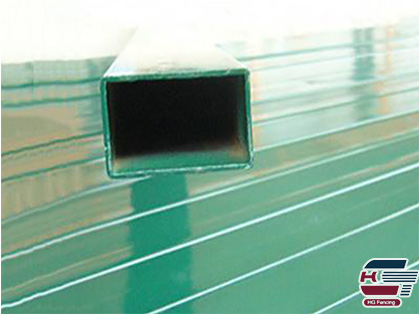

SQUARE POST

Square posts are a widely used type of fence post and can be used to support almost all types of metal fence panels, such as 3d security fence,358 security fence etc., square posts are made of high quality low carbon steel or hot rolled steel for high strength.

Material:low carbon steel or hot rolled steel.
Thickness: 1mm - 4mm
Length: depending on the height of the mesh, or special sizes can be customized upon request.
Surface treatment: hot dipped galvanized, PVC coated or powder coated.
Post Type: square post, rectangular post.

Post type	Post size(mm)	Post thickness (mm)
Square post	50×50	1-2
Square post	60×60	1-3
Square post	80×80	2-4
Square post	100×100	2-4
Rectangular post	40×60	1-3
Rectangular post	40×80	1-4
Rectangular post	60×80	1-4
Rectangular post	80×100	2-4

SURFACE TREATMENT

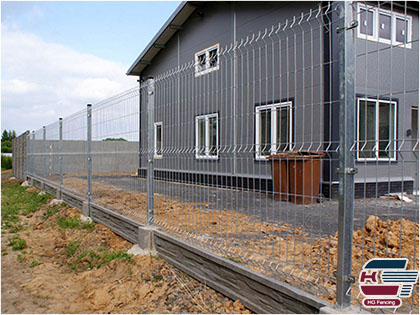

1. Hot Dipped Galvanized Square Post Fence

Through the Hot dipped galvanizing process after welding, a protective layer is formed on the steel surface. This coating can effectively prevent oxidation corrosion and prolong the service life of steel.

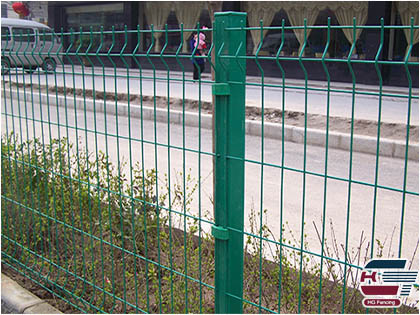

2. Plastic Coating (PVC Coating) Square Post Fence or Powder Coating Square Post Fence after galvanized.

We choose high quality powder for spraying, which combines with the galvanized layer on the steel surface to form a more effective protective layer. It can better prevent the steel from oxidation and corrosion, Therefore, our fencing system can stay beautiful and strong for a longer time, and this treatment will make the fence more beautiful.

DETAILS

INSTALLATION METHOD

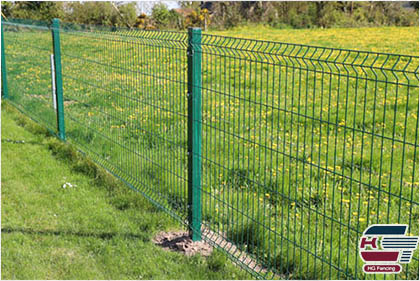

Embedded the post in the earth or concrete.

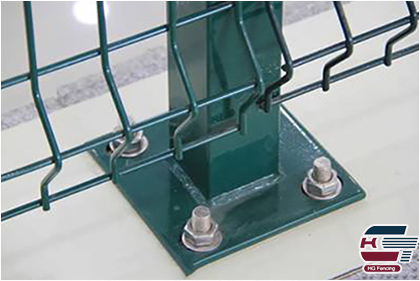

Bolted to a concrete foundation.

ACCESSORIES

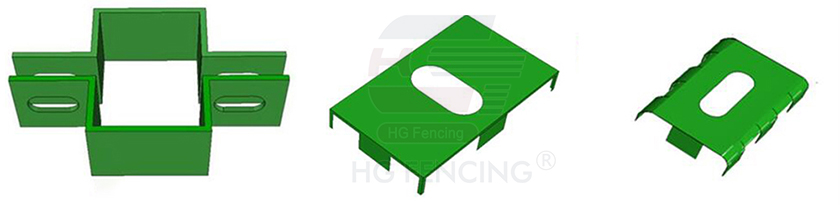

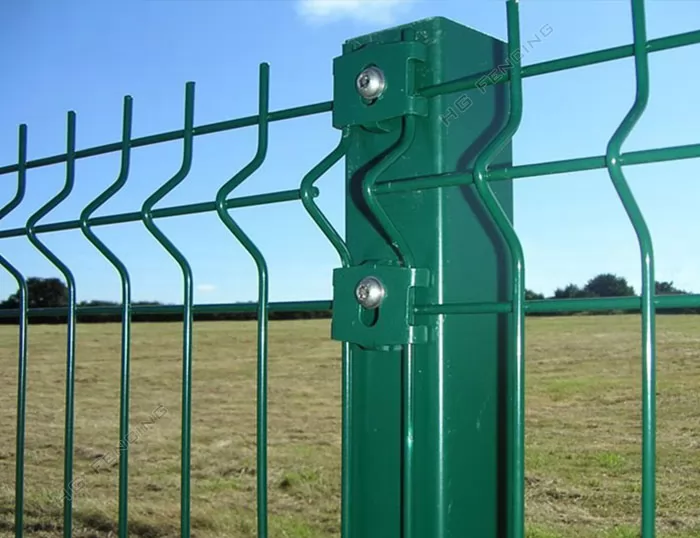

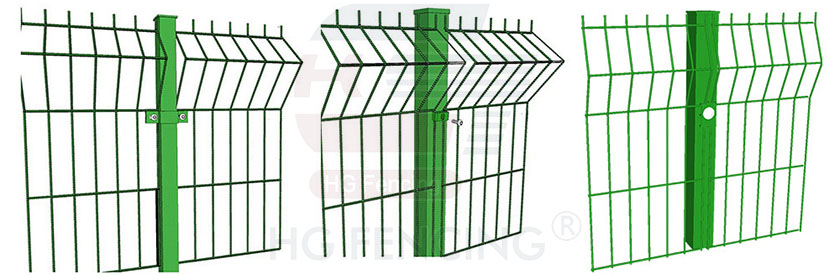

Clamps: the clips can fix the mesh and the column so that they are tightly fixed together. The clips are divided into plastic clips and galvanized iron clips, which are UV resistant, rust resistant and corrosive, and have a long service life.

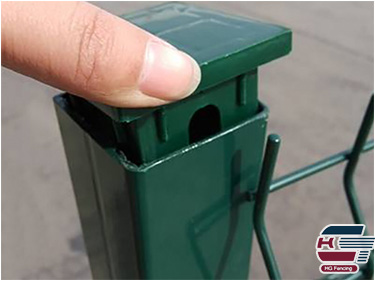

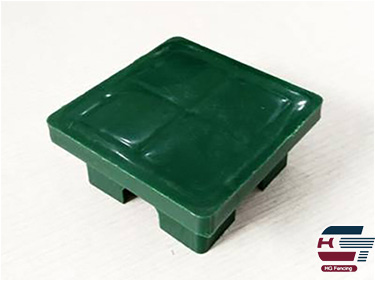

Rainproof Cap: the rainproof cap of the square post can prevent rain and snow, dust and other impurities from entering, which can prevent the corrosion inside the column. Improve the service life of the square post fence.
