Razor Wire
PRODUCT OVERVIEW
Material: Galvanized or Stainless steel sheet & wire
Certificate: SGS, BV, ISO9001, ISO14001, ISO45001
Brand: HG Fencing
Manufacturer: HUA GUANG
Origin: China
SPECIFICATION
DESCRIPTION

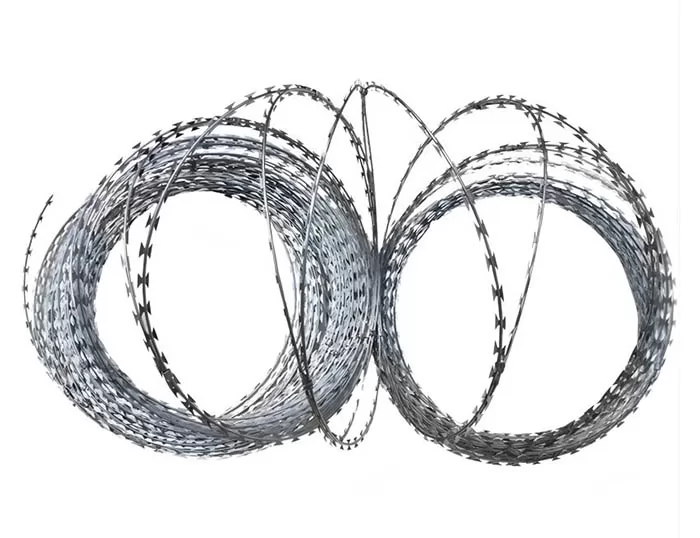

Concertina wire is a type of razor wire that is one of the most widely used. It is used as a security measure to prevent unauthorised entry or intrusion. It consists of coils of wire with sharp edges which are interwoven and designed to form an impenetrable barrier.
Concertina wire is usually used in high security areas such as military and prisons, airports and government buildings, as well as in border fences to prevent illegal immigration and smuggling, and to protect homes, factories etc. It is very effective in deterring intruders.
Concertina Wire Features
- he raw materials are made of hot-dip galvanised steel sheets and hot-dip galvanised wire, or stainless steel sheets and stainless steel wire, which are very resistant to corrosion and can be used for more than ten years without rusting.
- High strength steel, high tensile strength, high hardness, good elasticity.
- Can be used independently or installed on top of the parapet or wall, easy to install, easy to transport.
- Unique shape, will not be easily destroyed, intruders difficult to cross.
Technical Parameters of Concertina Wire
- Concertina Wire's Material: hot-dip galvanised steel sheets and hot-dip galvanised wire; stainless steel sheets and stainless steel wire

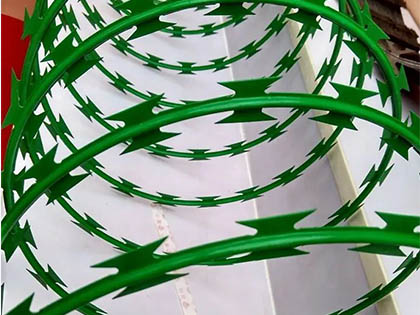

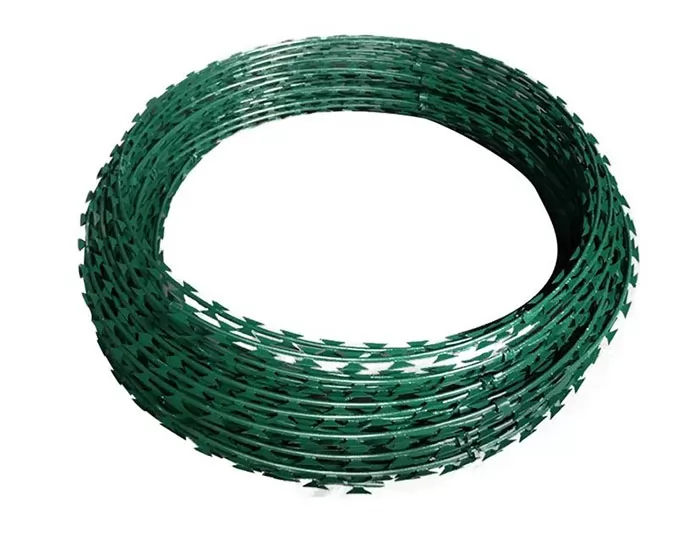

- Surface Treatment: electric galvanized, hot dipped galvanized, PVC coating, powder sprayed.
Blade Types & Specification
- Blade Type: BTO 10, BTO 12, BTO 18, BTO 22, BTO 28, BTO 30, CBT 60, CBT 65. BTO22 and CBT65 are the most common types.
- Wire Diameter: 2.5 mm
- Blade Thcikness: 0.5 mm, 0.6 mm
| Blade Types & Specification | ||||||
|
Blade Type |
Blade Style | Blade Thickness (mm) | Wire Diameter (mm) | Barb Length (mm) | Barb Width (mm) | Barb spacing (mm) |
| BTO-12 |
|
0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-18 |
|
0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
| BTO-22 |
|
0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-28 |
|
0.5+0.05 | 2.5±0.1 | 28±1 | 15±1 | 45±1 |
| BTO-30 |
|
0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 45±1 |
| CBT-60 |
|
0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
| CBT-65 |
|
0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
Concertina Coil Diameter Specification
- Coil Dimeter: 450 mm, 500 mm, 600mm, 700 mm, 800mm, 900mm, 960mm
- Coil Quantity: 33, 56
- Coil Types: single coil, crossed type
|
Concertina Coil Diameter & Specification |
||||
| Coil Diameter (mm) | Coil quantity | Covering length (m) | Razor Wire Types |
Coil Types |
| 450 mm | 33 | 7-8 | CBT-60, CBT-65 | single coil |
| 500 mm | 56 | 12-13 | CBT-60, CBT-65 | single coil |
| 700 mm | 56 | 13-14 | CBT-60, CBT-65 | single coil |
| 960 mm | 56 | 14-15 | CBT-60, CBT-65 | single coil |
| 450 mm | 56 | 8-9 (3 clips) | BTO-10.12.18.22.28.30 | crossed type |
| 500 mm | 56 | 9-10 (3 clips) | BTO-10.12.18.22.28.30 | crossed type |
| 600 mm | 56 | 10-11 (3 clips) | BTO-10.12.18.22.28.30 | crossed type |
| 600 mm | 56 | 8-10 (5 clips) | BTO-10.12.18.22.28.30 | crossed type |
| 700 mm | 56 | 8-10 (5 clips) | BTO-10.12.18.22.28.30 | crossed type |
| 800 mm | 56 | 11-13 (5 clips) | BTO-10.12.18.22.28.30 | crossed type |
| 900 mm | 56 | 12-14 (5 clips) | BTO-10.12.18.22.28.30 | crossed type |
| 960 mm | 56 | 13-15 (5 clips) | BTO-10.12.18.22.28.30 | crossed type |
Concertina Wire Details and Types
Concertina wire is the most widely used type of razor wire and can be divided into two categories depending on its construction: single coil concertina wire and crossed type concertina wire.
-

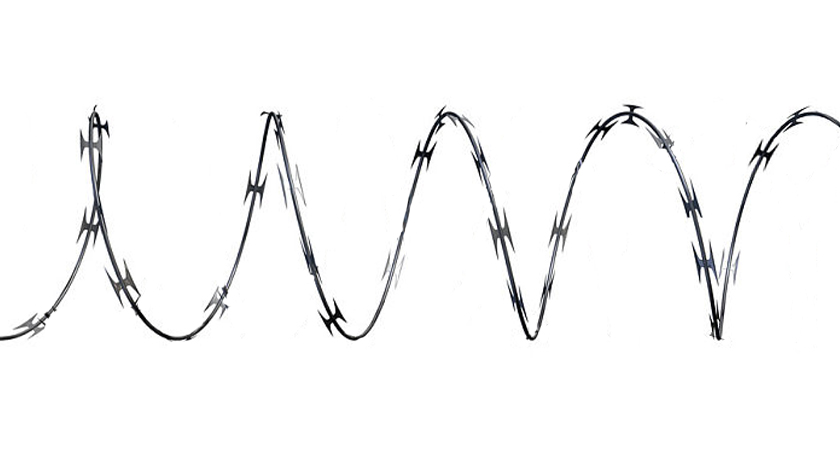

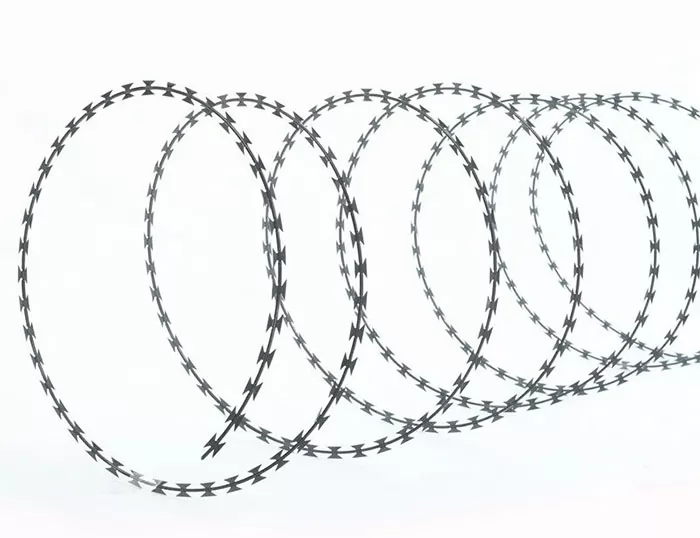

The single coil concertina wire is made up of several consecutive single spirals, usually
with the CBT60 or CBT65 blade type. This type of Concertina wire is simpler, less costly,
lighter and easier to install and is suitable for simple security applications such as
residential protection, factory security etc.
-

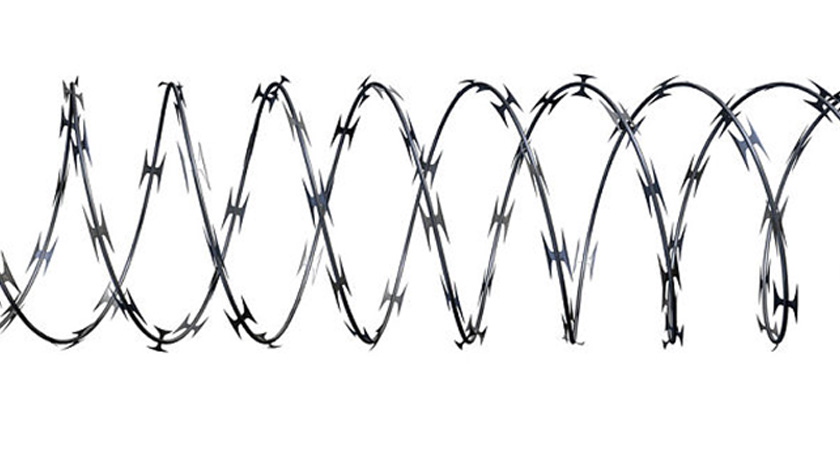

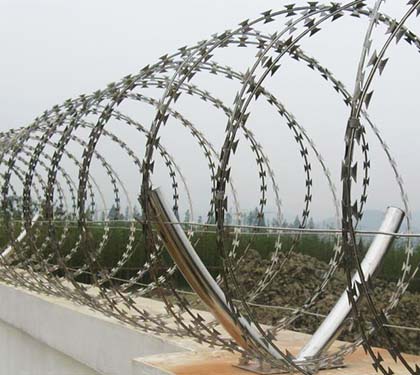

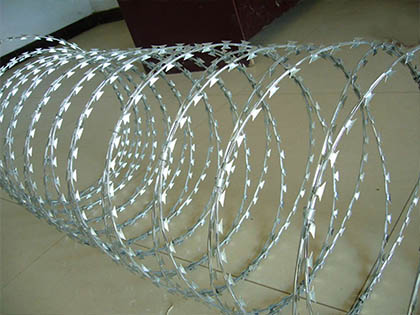

The crossed type concertina wire, which uses clips to connect two adjacent spirals to form a
tighter structure, provides a significant increase in security compared to single coil
concertina wire. This makes intrusion more difficult and is suitable for applications with
higher security requirements, such as battlefields, military bases, prisons, airports, etc.

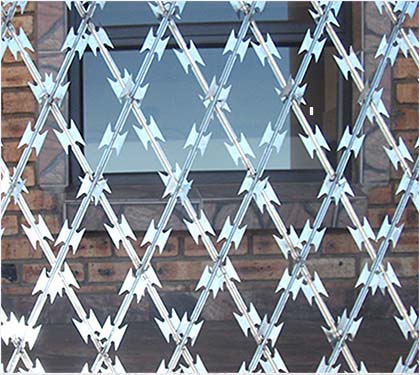

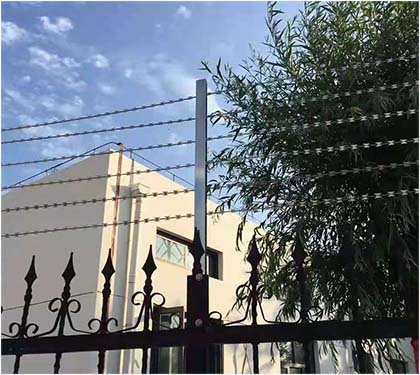

Other Types of Razor Wire
Razor Wire includes concertina wire, straight razor wire, flat razor wire and Razor Wire Fence etc. Hua Guang Fence Company is a razor barbed wire manufacturer, can produce them all. Please feel free to contact us if you require.
Production of Concertina Wire
1. the raw material is first stamped to form razor shaped sheets.
2. The second step is to wrap the razor shaped sheets onto hot-dip galvanised steel wire or stainless steel wire, which then forms the semi-finished razor barbed wire, in which step the razor barbed wire is also coiled into a customised roll of diameter and number of turns.
3. In the third step, if a crossed type concertina wire is required, the coiled razor wire is then clamped onto the clips.

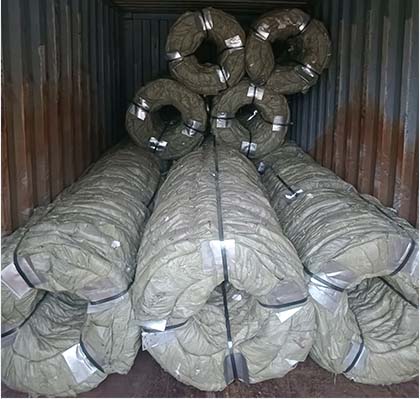

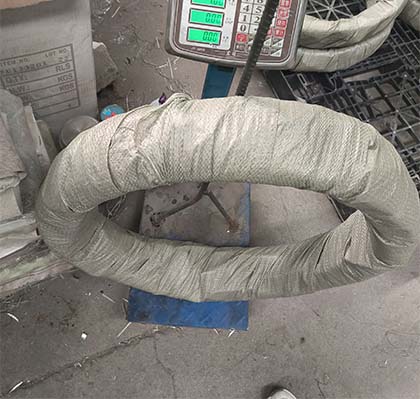

Package of Concertina Wire
1. The concertina wire is be packed in woven bags, waterproof paper or plastic bags.
3. The concertina wire is be any other packaging can be customised.

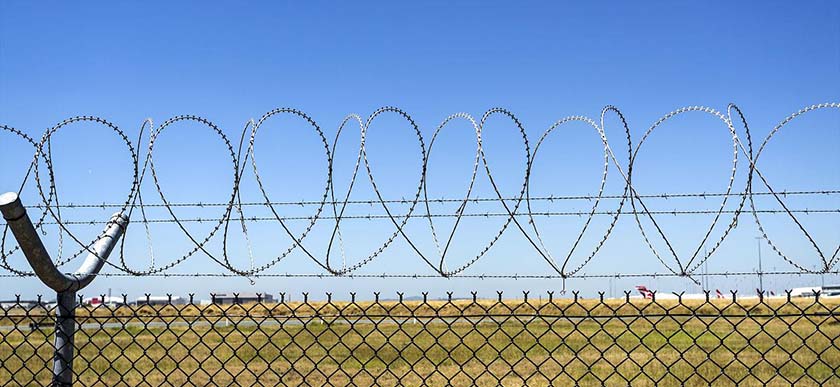

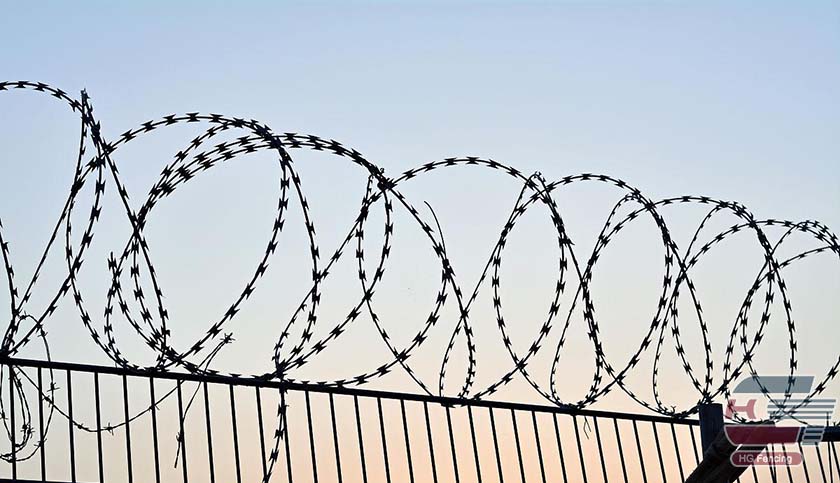

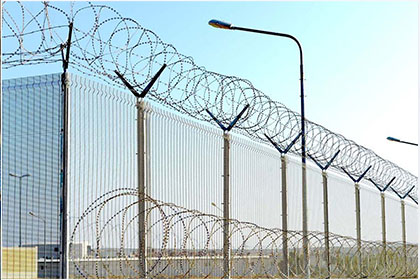

Application of Concertina Wire

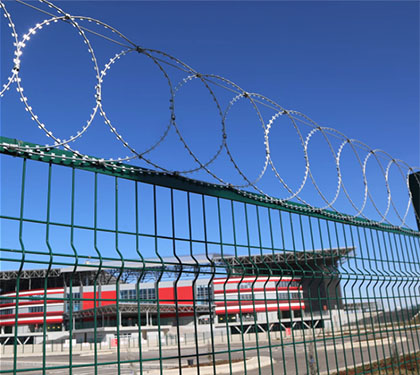

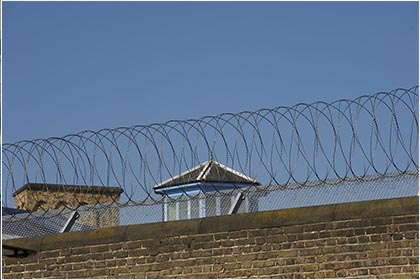

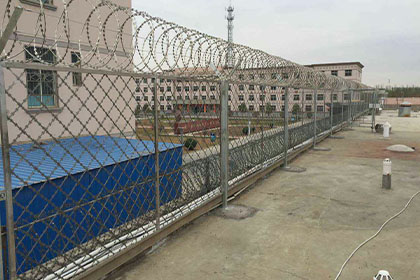

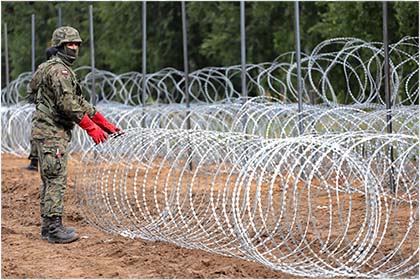

The concertina wire is easy to transport and install and is used in a wide range of applications such as prisons, airports, borders, military bases, trenches, as well as residential and home fences, etc. It can be installed on top of fences or walls or can be installed independently to form razor wire fences.
