Material: Q195 or Q235 wire and pipe
Certificate: SGS, BV, ISO9001, ISO14001
Brand: HG Fencing
Manufacturer: HUA GUANG
Origin: China
Euro Fence
PRODUCT OVERVIEW
PRODUCT DESCRIPTION
Euro fence Made of high quality wire, the welded fence panel is galvanized or PVC coated offering good resistance to corrosion and ultra violet radiation.
The panels and posts are jointed together with the special plastic clamps or strong stainless steel wire clamps. They are easy to be installed and offer a firm structure for fencing uses.
Advantages: good anti-corrosion performance, anti-aging and easy and quick installation. The wave shape of the wire makes the fencing more beautiful and firm.
Uses: Used in highways, railways, airport, residences, harbour, wharf, breeding, poultry etc.
SPECIFICATION
TECHNICAL PARAMETERS
| Examination item | Function index sigh | Performance standard |
| The thin degree | ≤5% | GB/T 6554 |
| The thickness of coated | 0.6-1.0mm | GB/T 6554 |
| The strength of concussion | 21.6J | ASTMD 2794 |
| The function of winding | 1Grade | GB/T 6742 |
| Adhesive force | 1Grade | GB/T 9286 |
| The rate of rupture andprotraction | =500% | GB/T 1040 |
| Manpower accelerating ageing | no apparent change | GB/T 9344 |
| chemical media soaking resistance(168h 23±2℃)10%HCL 10%NaC | no apparent change | GB/T 11547 |
| Mesh Opening | Wire Diameter（mm） | Length（m） | Width（m） |
| 2"×2" | 1.5～3.5 | 10-50 | 0.6-2.1 |
| 2"×3" | 1.5～3.7 | ||
| 2"×4" | 1.5～3.7 |

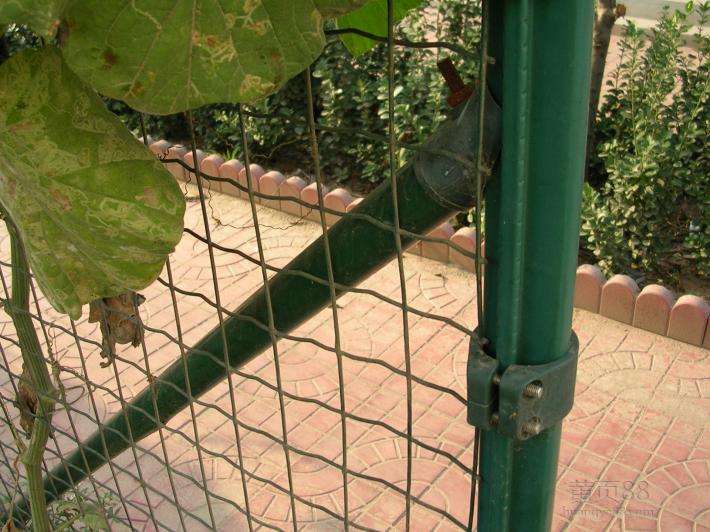

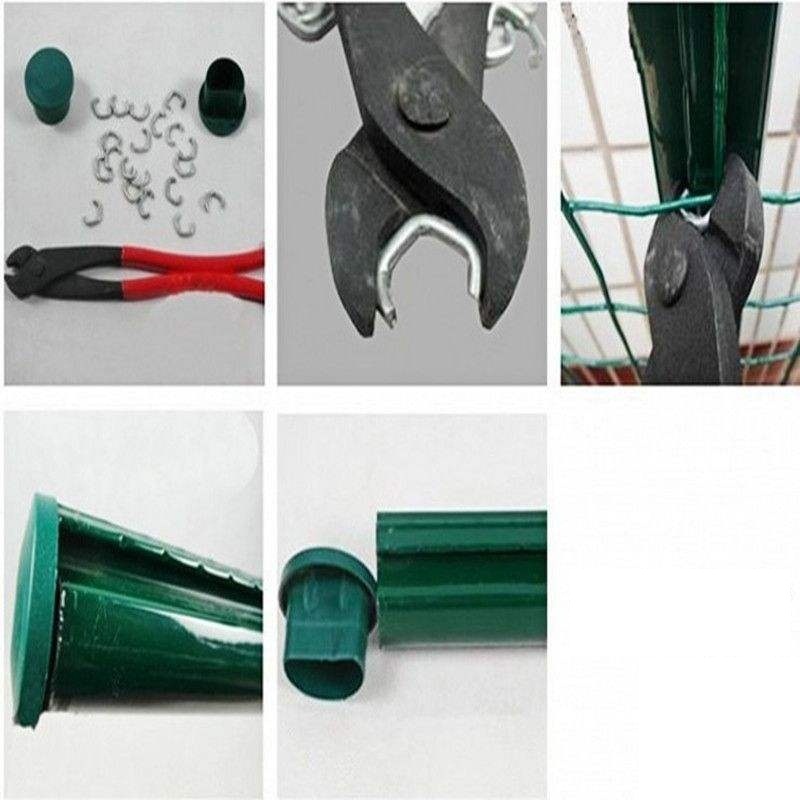

TWO INSTALL WAYS

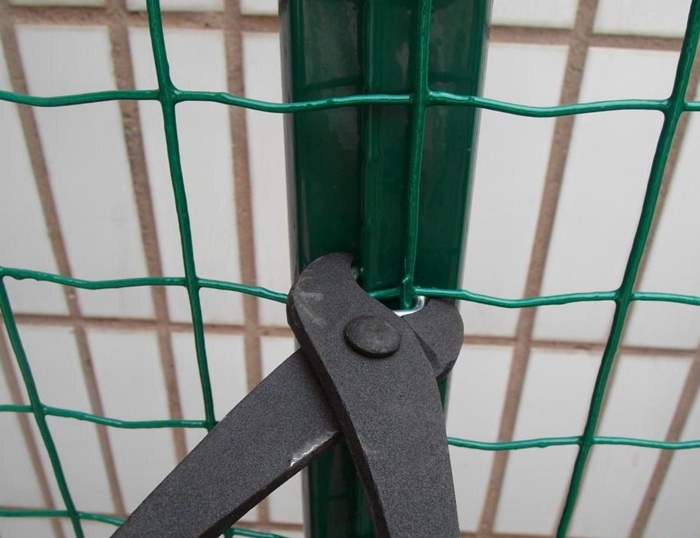

1. Stanless steel clip
2. Plastic clamp

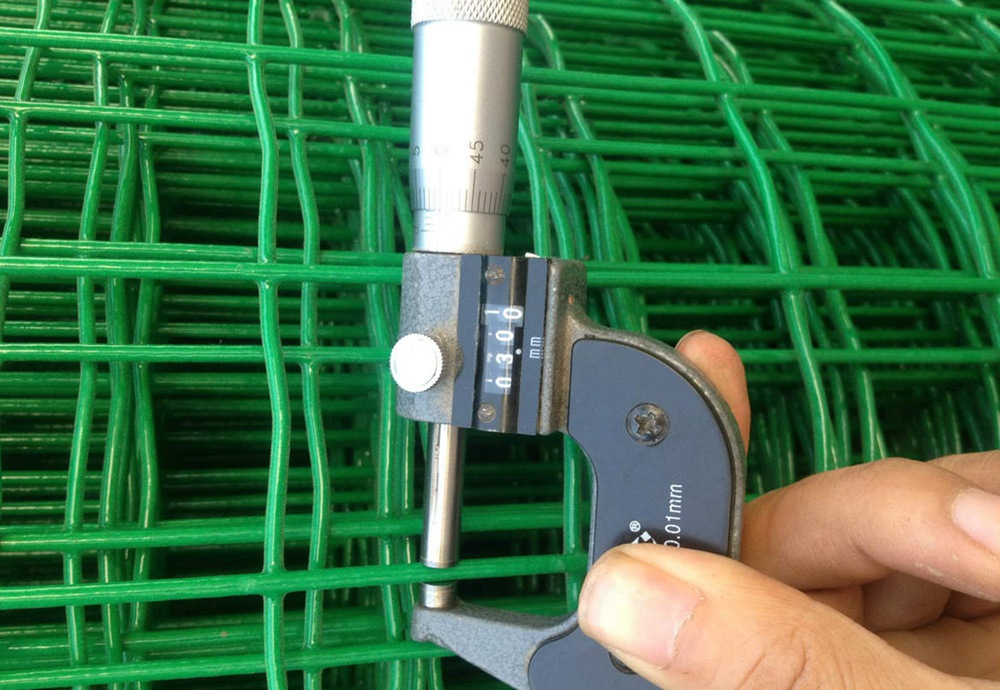

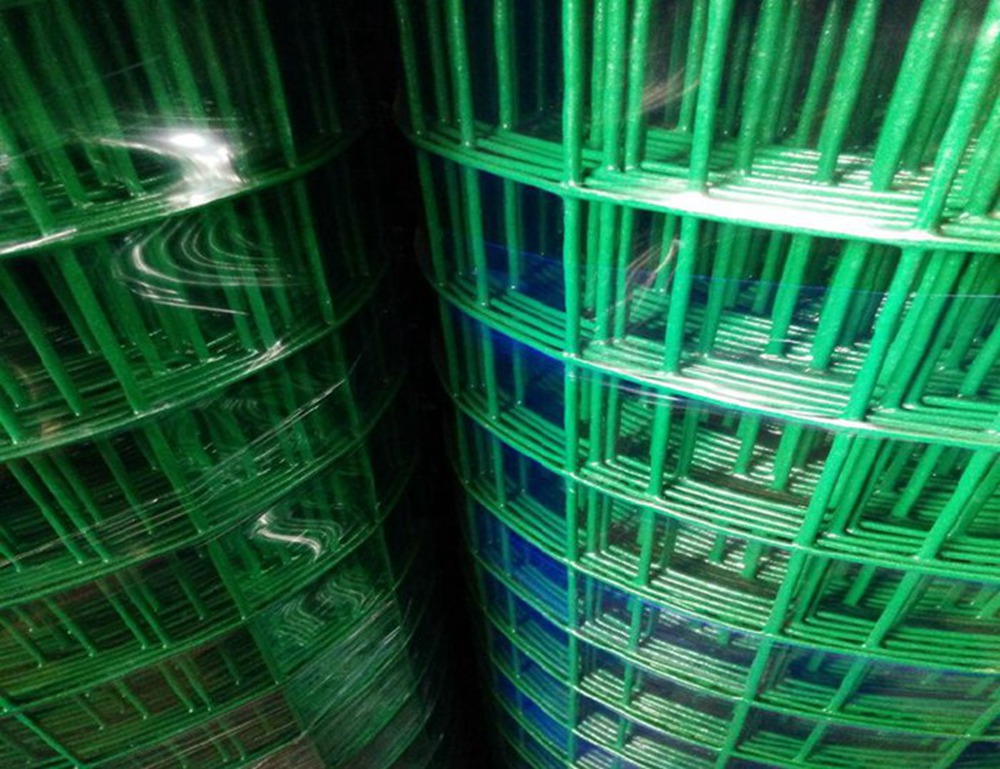

DETAIL
