PRODUCT OVERVIEW

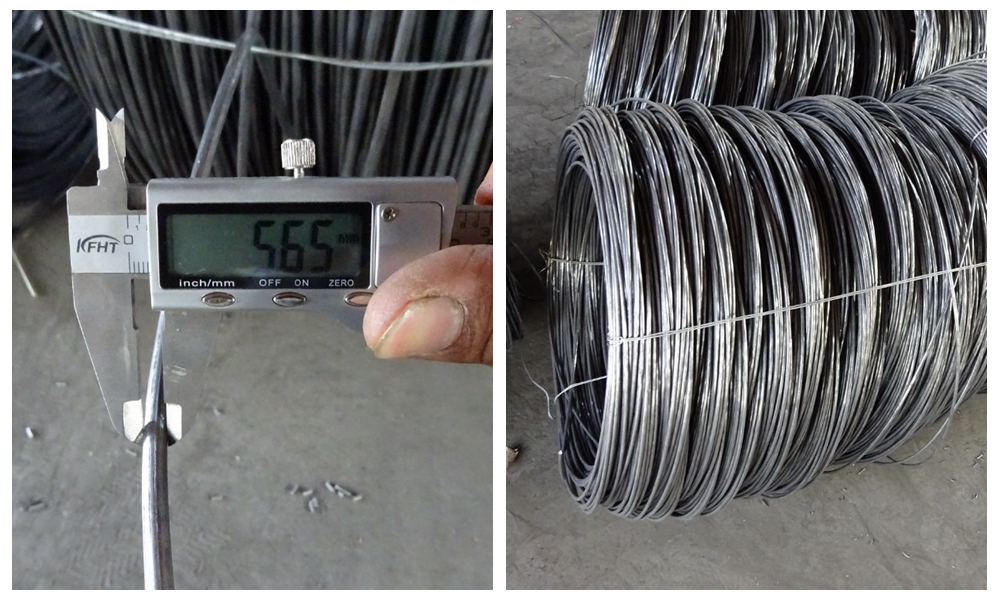

Material: Q195 or Q235 wire and pipe

Certificate: SGS, BV, ISO9001, ISO14001, ISO45001

Brand: HG Fencing

Manufacturer: HUA GUANG

Origin: China

PRODUCT DESCRIPTION

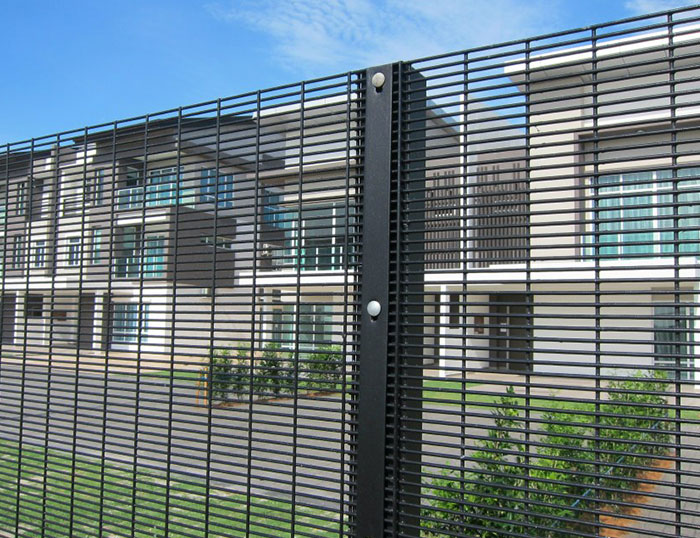

Want to keep your area safe and secure? You need 358 Anti Climb Fence. 358 anti climb fence is a special kind of fence to prevent the intrusion of outsiders. The 358 fence is anti-climbing because the spacing of the wire mesh is tight and there is no room for cutting or placing hands and feet, which ensures safety. 358 anti climb fence is very widely used in the world. It is mainly used in prisons, airports, military bases, airports, railroads, houses and other places.

358 fence means the mesh hole is 3'*0.5' and 8 gauge wire, the mesh opening is very small and the wire diameter is very thick. So the protection is very strong.
Barbed wire can be installed on the top to further improve its security and protection.
HG Fencing provides a complete set of fence, including matching accessories as well as technical guidance.

TECHNICAL PARAMETERS

fence model	height of fence range (mm)	width of panel range (mm)	wire dia range (mm)	mesh opening (mm)	post size type (mm)
358 fence Anti-climb fence	800-2500	2000-3100	3.0-5.0	12.6*76.2	square post :6060, 8080
				12.5*75	C post 60*80mm
				25.*75	H post :44*100
popular panel size	1800*2400	2100*2400	2400*2400	2475*3100	2200*2800
popular post size	60602.0(thk)	60802.0(thk)	60602.2(thk)	60602.5(thk)	60802.2(thk)
surface treatment	1. Black wire welded then hot-dipped galvanized
	2. Powder coated after galvanized wire welded
	3. PVC coated (plastic coating) after galvanized wire welded

SURFACE TREATMENT

Hot Dipped Galvanized
Through the Hot dipped galvanizing process after welding, a protective layer is formed on the steel surface. This coating can effectively prevent oxidation corrosion and prolong the service life of steel.
Plastic Coating (PVC Coating) or Powder Coating after galvanized

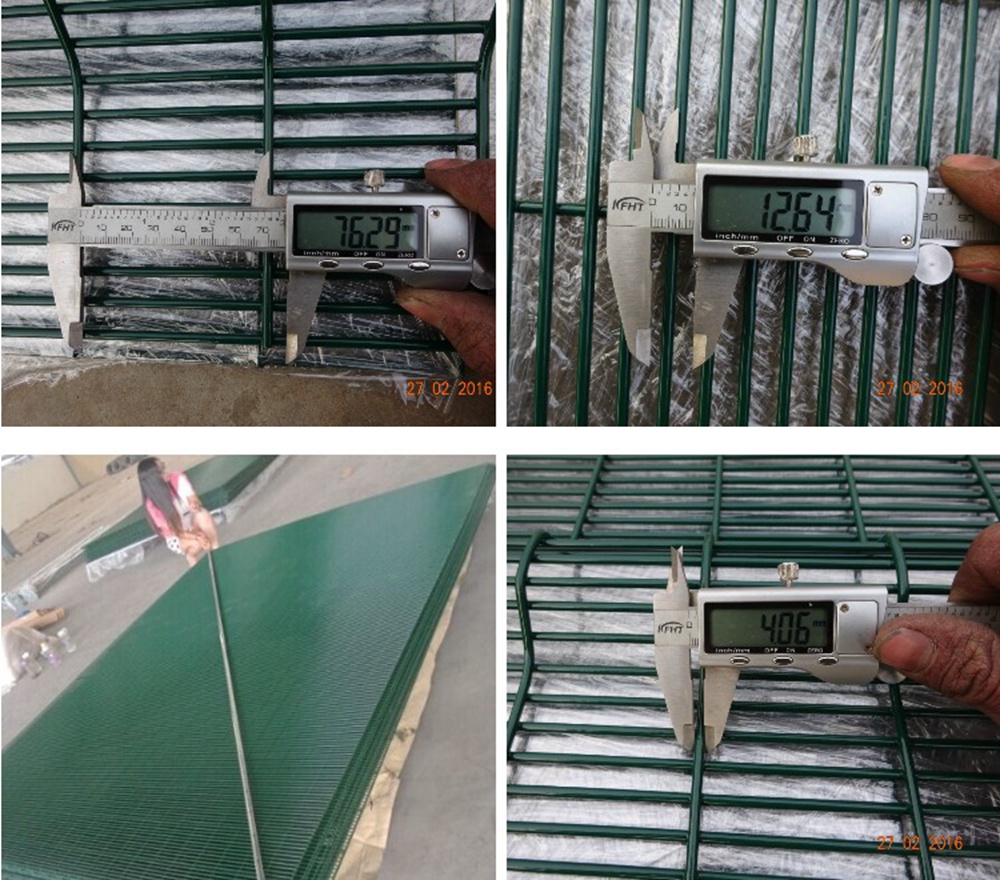

We choose high quality powder for spraying, which combines with the galvanized layer on the steel surface to form a more effective protective layer. It can better prevent the steel from oxidation and corrosion. Therefore, our fencing system can stay beautiful and strong for a longer time, and this treatment will make the fence more beautiful.

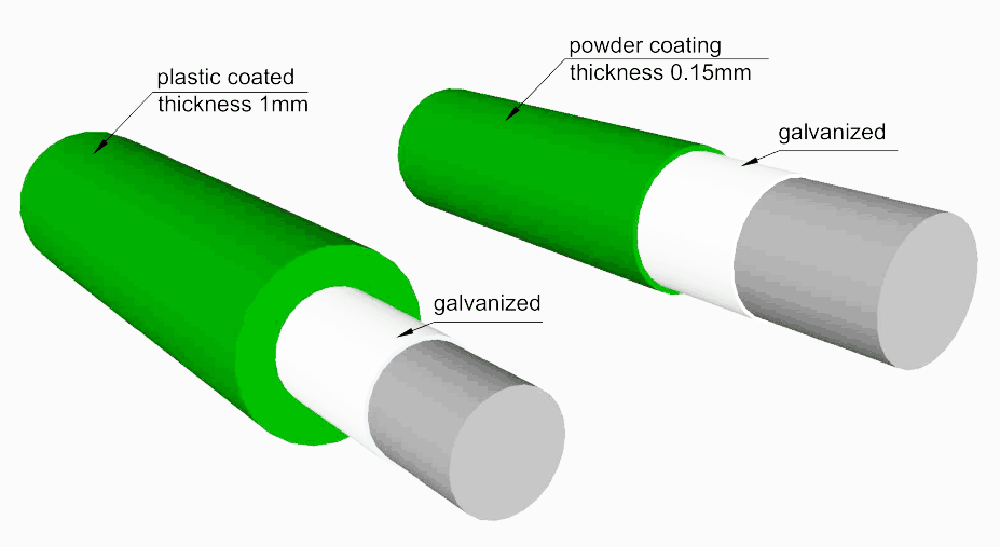

The difference between Plastic Coating and Powder Coating after galvanized:

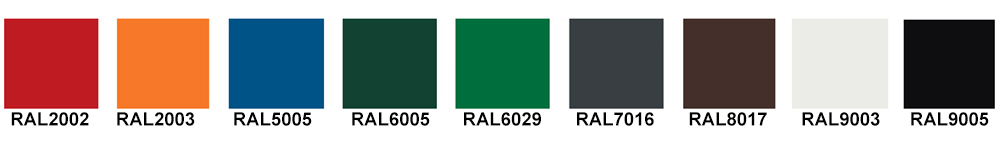

POPULAR COLORS

RAL 6005 green, RAL 7016 grey, RAL 9005 black are common colors, all RAL colors can be customized.

DETAILS

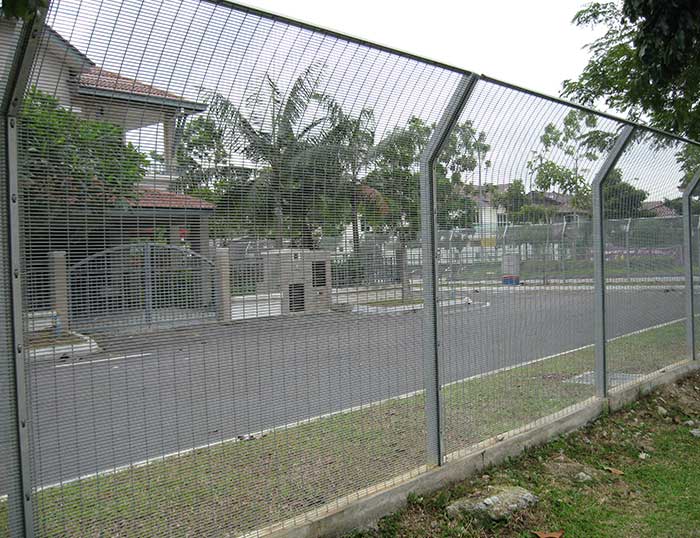

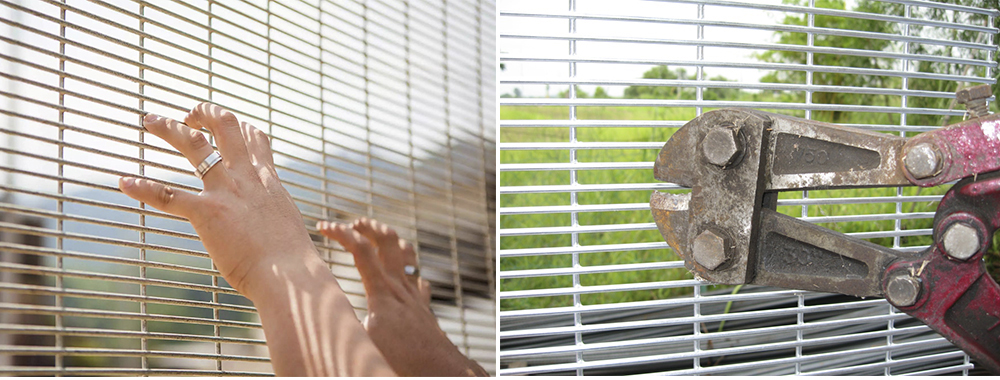

Clearvu Fence can largely prevent human climbing and general tool cutting due to its small mesh opening and unique design, which can better protect your surroundings.

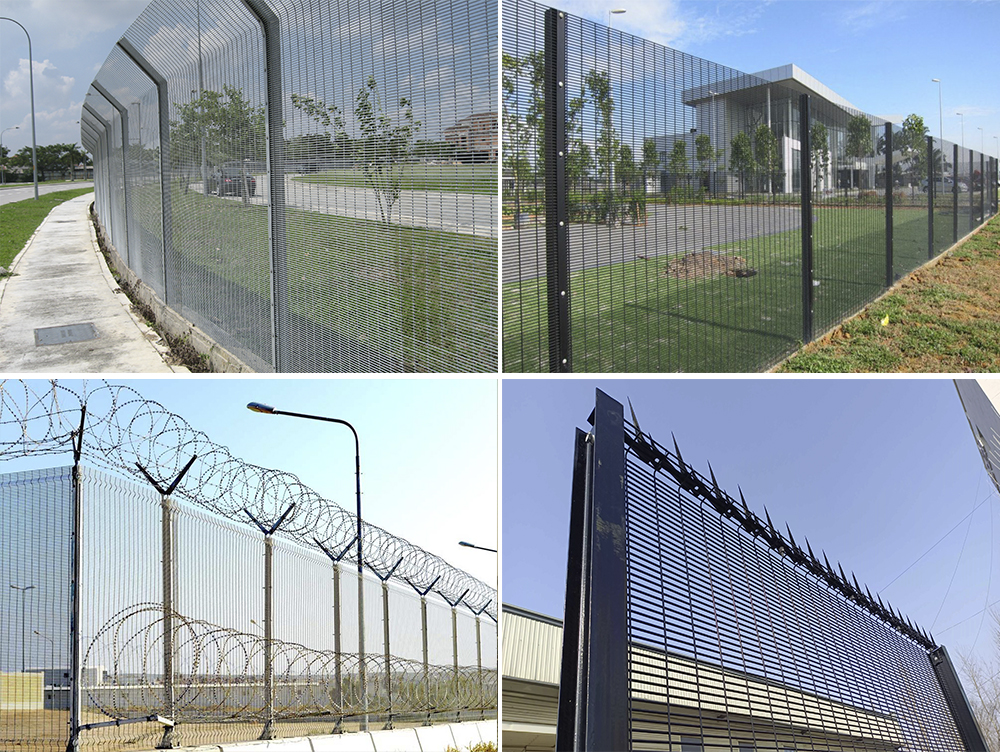

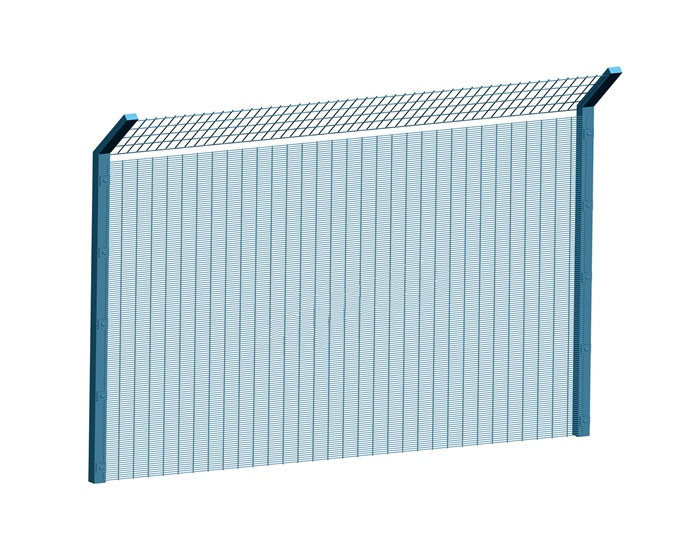

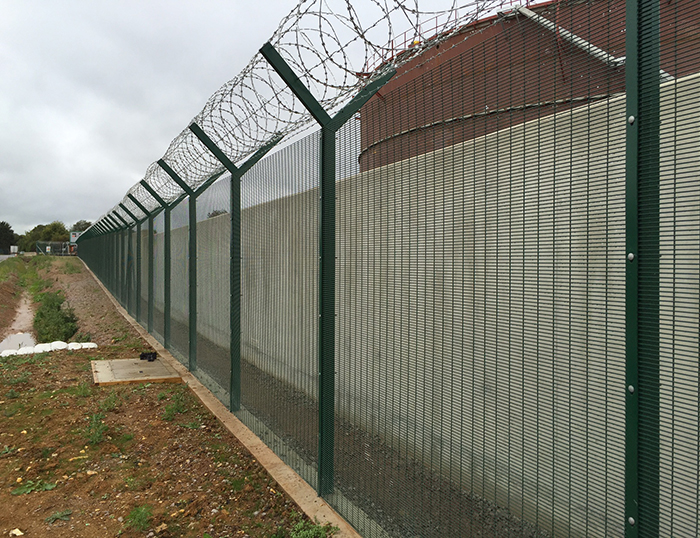

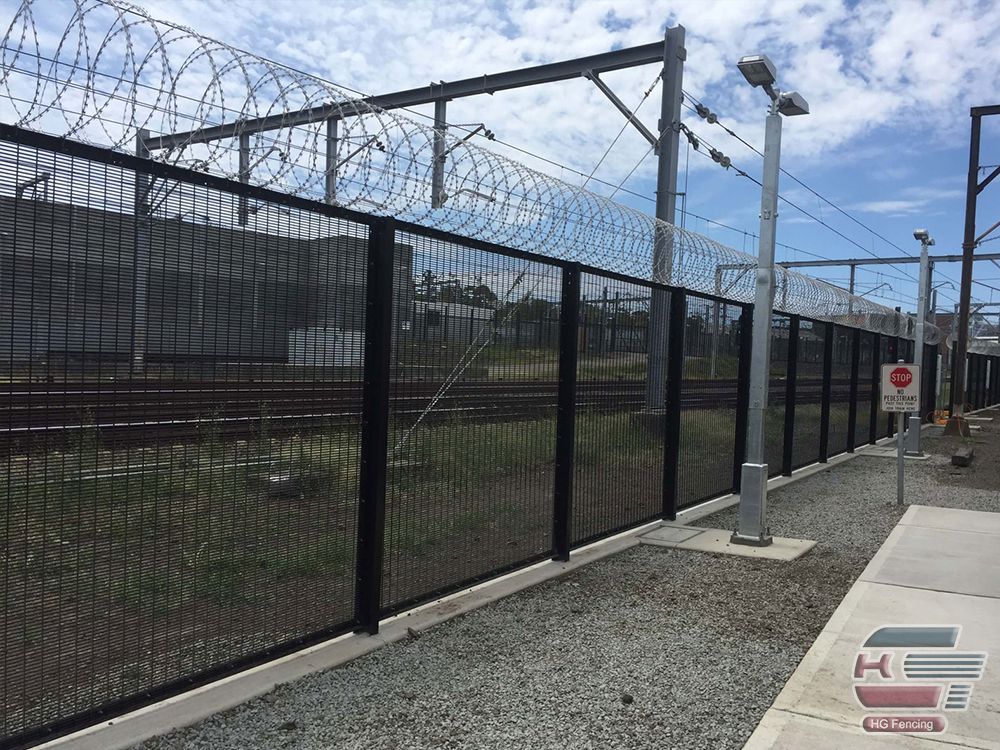

The top of the Anti Climb fence can be equipped with razor barbed wire and common barbed wire through the Y-shaped column, which can further play a protective effect. Mainly used in military, airport, troops, prisons, light rail, intercity trains and other important places of isolation.

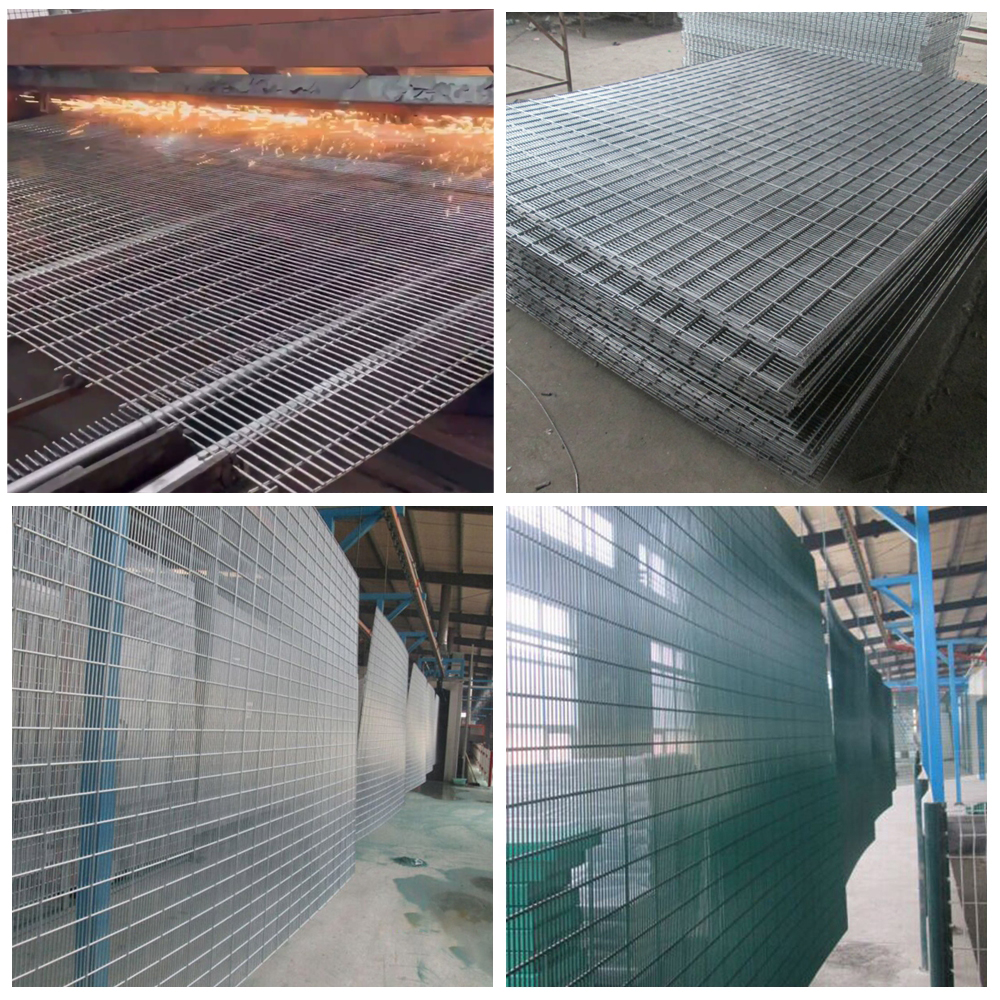

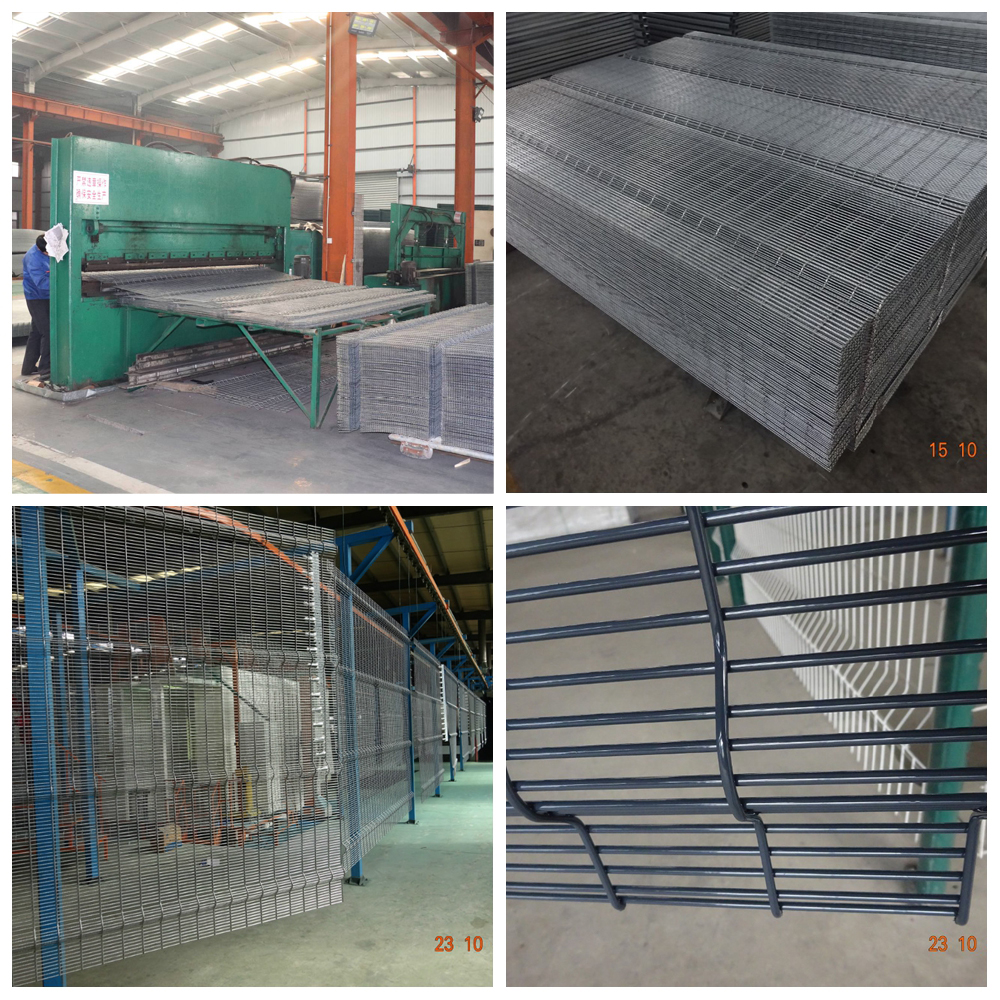

PRODUCTION PROCESS OF 358 ANTI CLIMB FENCE

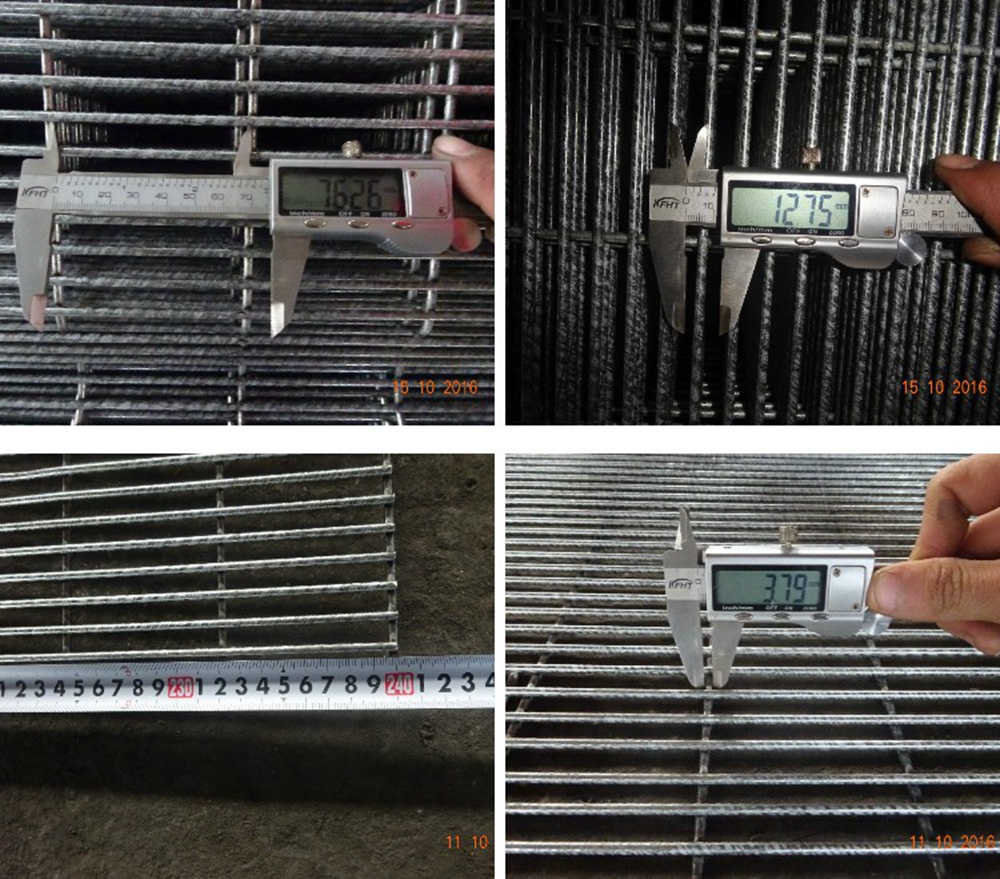

We use the most advanced full-automatic welding machine, after welding, the panel surface will be flat and high tensile strength.
The famous Akzo Noble powder makes the surface more beautiful and prolong the outdoor service life at least 15 years.
